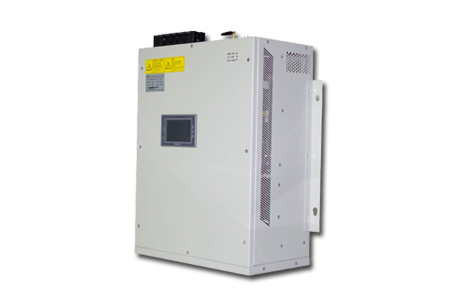

Advance Static Var Generator / Statcom Var Generator

Static var generator/SVG/STATCOM is the new standard in reactive energy compensation. This power electronic current source is the accurate and highly reliable solution for today’s networks characterized by significant increase in harmonics, voltage variations caused by intermittent renewable sources connected to the network and voltage level due to the smart grid development. The DSP controlled IGBT topology enables a perfect compensation on each phase for both inductive and capacitive loads. It also correct phase unbalance where necessary. Immune to harmonics, resonance and voltage level, it offers a maintenance free solution reusable in any network configuration.

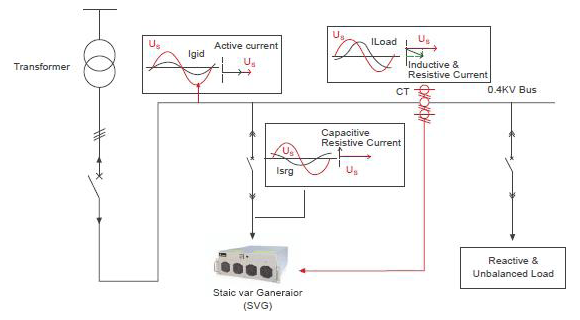

SVG Operating Principle

SVG checks the current through the external CT and performs computing through the external DSP to analysis the reactive content of the load current. After that , it controls the PWM signal generator based on the settings to send control signals to the internal IGBT. In the way, it generates reactive compensation current to implement dynamic reactive power compensation.

Multifunctional: Reactive power and imbalance compensation
Excellent reactive compensation: High speed, Precise (-0.99≤Cosφ≤0.99), Step-less, Bi-directional (capacitive and inductance) compensation
Excellent imbalance correction: Both negative and zero sequence, mitigates neutral current
Wide input voltage & frequency range Adapts to tough electrical environment
Low thermal loss (≤3% of rated SVG capacity), efficiency ≥ 97%
High stability: Infinite impedance to grid, avoids harmonic resonance problem
Flexible application: Modular design, embedded in standard or customized cabinet
Easy installation and maintenance: Easy installation for SVG module replacement and expansion
Wide capacity range: 50kvar~600kvar for a single cabinet, up to 10 cabinets in parallel
Environmental adaptability: -10~50°C temperature, compatible with diesel generators
Complete protection: Grid over/under voltage, SVG over current, over temperature, and others. All faults recorded in event log, convenient for failure analysis

SVG Application Field

Electric Arc Furnaces – voltage stabilization reduces tap-to-tap time and electrode consumption.
Rolling Mills – elimination of voltage and harmonic distortions reduces reactive power demand and increases electrical system capacity.
Mining and heavy industry – dynamic reactive power compensation stabilize the power system, especially on large motor start up, ensuring reliability of the power system.
Wind and solar farms – meeting strict grid connection criteria by providing dynamic voltage control and voltage stability at the common coupling point (PCC). Renewables markets – including solar farms, wind farms, solar panel installations.

Technical Specification :

Item
System parameters
Rated input line voltage	400V*（1±20%）
Power grid frequency	50Hz/60Hz
Parallel operation	Unlimited
Overall efficiency	＞ 97%
Power grid structure	3P3W/3P4W
CT	150/5 ～ 5,000/5
Performance indicators
compensation capacity	30/50/75/100kvar
Response time	＜ 10ms
Target power factor	Adjustable from -1 to +1
Cooling mode	Smart air cooling: 220L/
Noise level per module	＜ 65dB
Communications and monitoring capabilities
Communications ports	Rs485, CAN, and network port
Communications protocols	Modbus and PMBus
Alarm	Available
Monitoring	Monitoring module, and optional centralized monitoring modules
Environment requirement
Altitude	2000 m. Between 2000 m to 4000 m, according to GB/T3859.2, the power decreases by 1% for every additional 100 m.
Operating temperature	-10 ～ 40 ℃
Relative humidity	5％～ 95％ non-condensing
Protection class	Ip20 (other IP classes are customizable.)	IP20

SVG Selection Table

Transformer capacity (kVA)		315	630	800	1000	1250	1600	2000	2500
VSVG	Capacity	100	200	250	300	400	500	600	750
	mounting type	Cabinet	Cabinet	Cabinet	Cabinet	Cabinet	Cabinet	Cabinet	Cabinet
	Number of cabinets (parallel operation)	1	1	1	1	1	2	2	2

SinE-Series Static Var Generator

Technical data and specifications
Rated Voltage	200V	400V	440/480V	690V
Grid voltage range	-20%~+20%	20%~+20%	Max Voltage 500V	-20%~+10%
Individual module capacity (kVar)	25、50、75、 100、150、200	50、75、100、150、200		75、100
Harmonic current compensation range	2nd to 50th harmonic orders
Frequency Overall efficiency	50/60Hz (-10%~+10%)
Frequency Overall efficiency	>97%
CT configuration	Closed or open loop（Open loop is recommended in case of parallel operation）
Overall response time	5ms
Grid type	3P3W, 3P4W
Overload capacity	110%-Continuous operation,120%-1min
Circuit topology	3-level topology
Switching frequency	20 kHz
Modularity	Maximum 20 units can be combined
Redundancy	Master/master or master/slave arrangement
Typical power losses	< 2.5% (depending of the load)
Target power factor	Adjustable from –1 to 1
Harmonic compensation	Available
Unbalance compensation	Available
Display	1.8/4.3/7-inch HMI（Optional）
Communication ports	RS485 Modbus (RTU)
Noise level	< 69 dB (depending on the load and model)
Altitude	Derating usage >2000m
ambient temperature	Operating Temperature：-35°C~55°C，Derating usage above 55℃
Humidity	Storage temperature：-45°C~70°C
Humidity	5%~95%RH，non-condensing
Protection class	IP20
Design/Approvals	EN 62477-1(2012)，EN 61439-1 (2011)
EMC	EN/IEC 61000-6-4，Class A
Certification	CE，CQC

Advanced Static Var Generators (ASVG) / Static Synchronous Compensator (Statcom)

We are the Manufacturer, Supplier, Exporter of Advanced Static Var Generators (ASVG), Static Synchronous Compensator (Statcom) and our setup is situated in Pune, Maharashtra, India.
